Experience the pinnacle of versatility and performance with the NovaMax® 150 forming machine. For processors of any size, the NovaMax® 150 boosts profits and productivity by assuring accurate filling and consistent weights, easy product changes and a low cost of ownership.

Featuring state-of-the-art electronic controls, the NovaMax® 150 delivers higher throughput and precisely controlled weight for a variety of products, including: meat; poultry; protein alternatives; pet food, treats and pharma; bakery products and much more.

Renowned for its solid, simple construction and reliability, NovaMax® is backed by the most valuable support package in the industry, which includes operator’s manual, initial machine training and worldwide technical support 24 hours a day, 365 days a year.

  • Positive feed hopper
  • High-speed mold plate drive
  • Hydraulic compression system precisely controls product flow
  • Hygienic design
  • User-friendly PLC and HMI
  • Low cost of ownership
  • Can be easily upgraded to a NovaMax® 400 for additional features and capacity
Features and Specifications
Typical Throughput* 2,250 lbs/hour
Variable Mold Plate Drive Strokes Per Minute (SPM) 15-75
Hydraulic Compression System 20 HP (14.9 KW)
Hopper Capacity – Positive Feed 500 lbs (227 kilos and liters)
Usable Mold Plate Area 6" wide x 6" front to back
(152 mm x 152 mm)
Mold Plate Thickness 1/8" thru 1" (3 mm thru 25 mm)
CE Compliant Yes

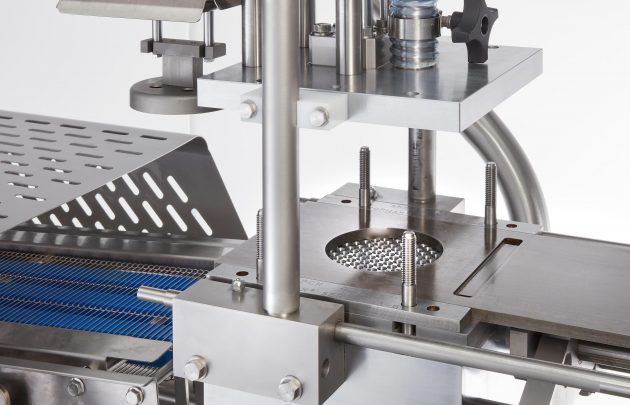

Optional Fill Types Tender-Form®
Tooling Systems Poultry-Plus®

*Actual throughput will depend on application specifications, production requirements and raw material.

Model Specifications
