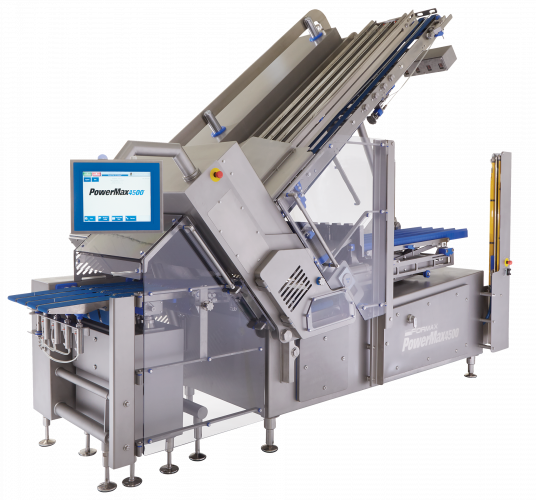

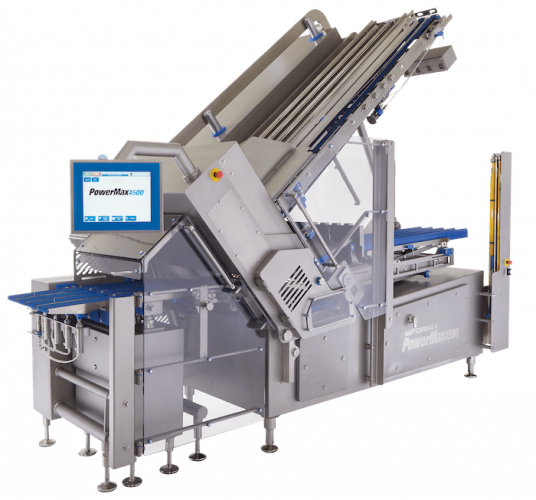

Power, precision, unmatched control: PowerMax 4500 sets the global standard in large capacity slicing.
PowerMax4500 sets the standard for performance among large-capacity slicing systems with its unmatched accuracy, hygienic features and low cost of ownership. Its robust advantages begin with user options for up to four independent product drives, a generous 8″ x 18.5″ throat (203mm x 470mm) and food safety features not found anywhere else.
The PowerMax4500 offers the unique advantages of Formax’s patented AccuPower® independent drive technology with a choice for one to four product drives, scales, and classifiers. This difference promises complete control over each log is as it delivered to the blade. So, even if log lengths vary, the slicing system compensates for the different lengths and every log finishes at the same time. That ensures greater control over the sliced portions and benefits the processor with consistent slice thickness, accurate portion weights, minimal giveaway and faster payback.
A robust system of automated features makes the PowerMax4500 a standout with respect to sanitation and food safety. Formax’s revolutionary laser curtain reduces the number of mechanical guards and produces a more open, hygienic environment. To speed and simplify washdowns, there is an automated cleanup mode that is initiated with the push of a button. It pivots the slicing deck into the horizontal position and permits easy access to internal components.
- Large slicing throat for maximum throughput
- Up to four independent product drives for a reduced giveaway and higher yields
- Automated cleanup mode to facilitate fast and thorough washdowns
- More open design with light curtains replacing physical guards
- Optional remote mounted electrical control cabinet
- High performance, proprietary blade technology
- Lunchmeat – calibrated or irregularly shaped
- Cheese
- Natural shaped, whole muscle products (examples: streaky bacon, back bacon, schinken, roast beef bombs)
- Stacked
- Shingled
- Shaved/bunched
- Geometric patterns
- Overlapped pattern
- Side shingle
- Quartered slices
Throat Area | Standard: 8" x 18.5" / 203 mm x 470 Optional: 4.75” x 21.5” / 120 mm x 546 |
---|---|
Log Length | 48" Standard backclamp / 1,220 mm 63" Optional backclamp / 1,600 mm 72” Optional backclamp / 1,828 mm Up to 120" for optional continuous feed / 3,050 mm |
Blade Speed | 1,800 rpm |
Blade Style | Involute |
Product Feed System | Upper and lower infeed conveyors with support down to the blade |
Number of Product Feeds | 1, 2, 3, or 4 independent drives |
Number of Scales and Classifiers | 0, 1, 2, 3, or 4 independent dynamic scales and classifiers |
Touchscreen Control | 15" / 380 mm color screen |
Electrical Control Cabinet Location | On machine or remotely mounted |
Options and Peripherals | Infeed staging conveyor 3D product scanner Automated slice quartering Slice folding XY conveyor for geometric patterns Transfer conveyor Blade honer Automated portion handling systems: Autoloaders, overlappers, buffering stations, inliners and twinliners |
